Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Место происхождения:

Китай

Фирменное наименование:

RanCheng

Сертификация:

CE, ISO 9001:2000

Номер модели:

RCZ420T

Свяжитесь мы

Запрос Цитата

Подробная информация о продукции

Двигатель:

Yuchai YC4A100/70 kW, Китай II Yuchai YC4DK100/73.5 kW, Китай III

Дизельный том танка:

70 л

глубина отверстия:

30 метров

Сверло трубы:

φ76*3000 мм

Диаметр отверстия:

φ90-138 мм

ДТХ-молот:

4"/5"

Крутящий момент (макс.):

3200 N.m

Выделить:

Hydraulic DTH drilling rig for mining

Surface DTH drilling rig open-pit

Separated DTH drilling rig hydraulic

Условия оплаты и доставки

Количество мин заказа

Цена

US $18000-22000

Упаковывая детали

Стандартная доставка

Время доставки

10-15 рабочих дней

Условия оплаты

T/T, Western Union

Поставка способности

100 комплектов в месяц

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Получите самую лучшую цену

Видео

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Получите самую лучшую цену

Видео

Интегрированная поверхностная буровая установка DTH Blasthole Drill Rig Machine для шахты

Получите самую лучшую цену

Видео

Автоматическая интегрированная гидравлическая буровая установка для бурения взрывных скважин для Yuchai YC6J220 162 кВт

Получите самую лучшую цену

Свяжитесь мы

Контакт теперь

Описание продукта

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Name: Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCZ420T
Price: 20,000.00 USD
Availability: InStock

Product Overview

The RCZ420T hydraulic DTH drilling rig is equipped with a dual-motor rotary drill head and a multi-way adjustable rotary speed valve.

With a rotation torque of up to 3200N·m, it meets the high drilling requirements for large 76mm drill rods and 138mm drill diameters.

It has a 3m propulsion length, enabling wider and deeper drilling operations.

Featuring construction-grade crawlers, a piston motor, and a leveling function, it has better climbing capacity and off-road performance. The 420 model can adapt to more complex construction site conditions.

It can drill vertical holes on sloped surfaces, meeting different construction requirements.

Technical Specifications

Model	RCZ420T
Engine	Yuchai YC4A100/70 kW, China II Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume	70 L
Weight	5280 kg
Dimension	542023082500 mm
Hole depth	30 m
Drill pipe	φ76*3000 mm
Hole diameter	φ90-138 mm
DTH hammer	4"/5"
Rotation torque (max.)	3200 N.m
Feed force	20 kN
Pull up force	45 kN
Feed type	Chain/cylinder
Gradient	25°
Track frame osciliation	+/- 10°
Tramming speed	3 km/h

Key Features

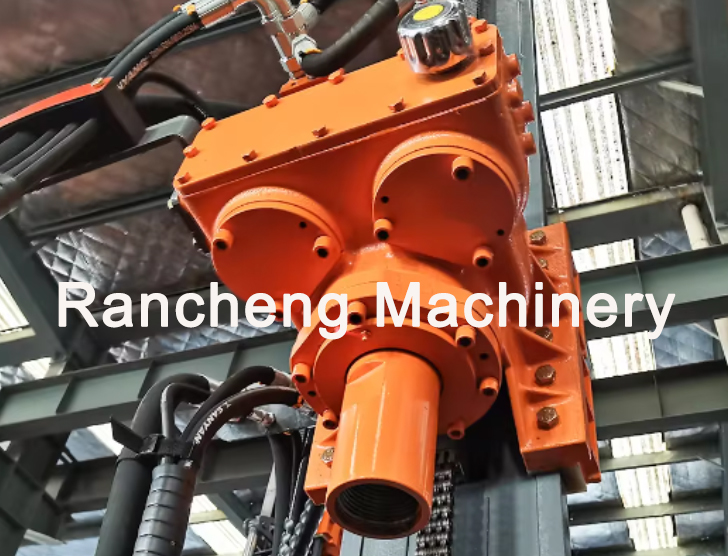

The dual-motor rotary drill head, with larger torque and higher rotation speed, meets the drilling needs for 76mm drill rods and 130mm drill diameters.

Construction-grade crawlers and a piston motor ensure more reliable machine performance and better traveling capabilities, allowing it to better adapt to complex ground conditions in surface mining drilling operations.

The centralized control panel is easy to operate, enhancing the efficiency, safety, and comfort of drilling operations.

The newly added leveling function gives the machine better climbing capacity and off-road performance, enabling it to handle different construction environments more effectively. The 420 model can also drill vertical holes on sloped surfaces, meeting various construction needs.

Applications

This RCZ420T hydraulic DTH drilling rig is widely used in open-pit mining blast hole drilling, quarry blast hole drilling, highway blast hole drilling, water conservancy projects, power station construction, railway construction, and other construction drilling operations.

Product Images

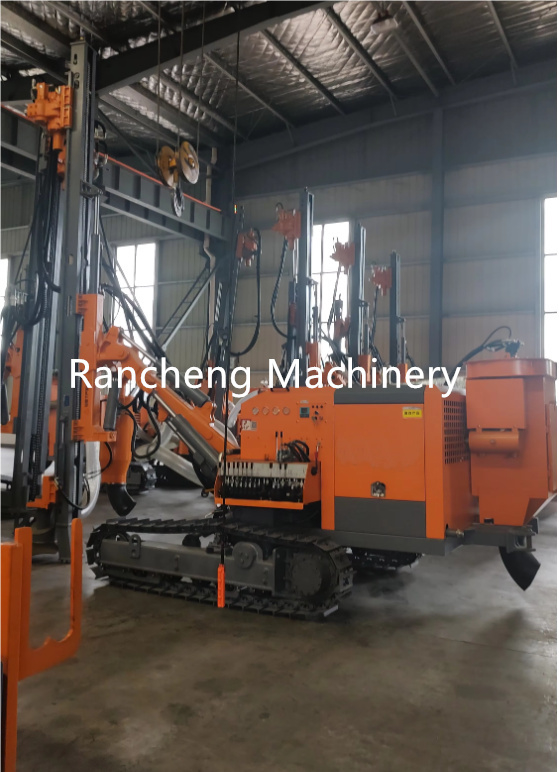

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 0

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 1

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 2

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 3

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining 4
