Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Hydraulic DTH drilling rig

3200 N.M rotation torque drilling rig

Surface down-the-hole DTH rig

Место происхождения:

Китай

Фирменное наименование:

RanCheng

Сертификация:

CE, ISO 9001:2000

Номер модели:

RCZ420T

Свяжитесь мы

Запрос Цитата

Подробная информация о продукции

Двигатель:

Yuchai YC4A100/70 kW, Китай II Yuchai YC4DK100/73.5 kW, Китай III

Дизельный том танка:

70 л

глубина отверстия:

30 метров

Сверло трубы:

φ76*3000 мм

Диаметр отверстия:

φ90-138 мм

ДТХ-молот:

4"/5"

Крутящий момент (макс.):

3200 N.m

Выделить:

Hydraulic DTH drilling rig

3200 N.M rotation torque drilling rig

Surface down-the-hole DTH rig

Условия оплаты и доставки

Количество мин заказа

Цена

US $18000-22000

Упаковывая детали

Стандартная доставка

Время доставки

10-15 рабочих дней

Условия оплаты

T/T, Western Union

Поставка способности

100 комплектов в месяц

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Получите самую лучшую цену

Видео

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For Open-Pit Mining

Получите самую лучшую цену

Видео

Интегрированная поверхностная буровая установка DTH Blasthole Drill Rig Machine для шахты

Получите самую лучшую цену

Видео

Автоматическая интегрированная гидравлическая буровая установка для бурения взрывных скважин для Yuchai YC6J220 162 кВт

Получите самую лучшую цену

Свяжитесь мы

Контакт теперь

Описание продукта

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque

Name: Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCZ420T
Price: 20,000.00 USD
Availability: InStock

Product Overview

The RCZ420T hydraulic down-the-hole drill rig is equipped with a dual-motor rotary drill head and a multi-function adjustable speed valve.

With a torque of up to 3200 Nm, it can meet the stringent drilling requirements of 76 mm drill rod and 138 mm hole diameter.

The 3 m drive length enables it to drill wider and deeper well sections.

With its high-quality construction crawler, piston engine and leveling function, it has excellent climbing ability and all-terrain performance. The 420 model is suitable for the most challenging construction site conditions.

It is capable of drilling vertical wells on slopes to meet various construction needs.

Technical Specifications

Model	RCZ420T
Engine	Yuchai YC4A100/70 kW, China II Yuchai YC4DK100/73.5 kW, China III
Diesel tank volume	70 L
Weight	5280 kg
Dimension	542023082500 mm
Hole depth	30 m
Drill pipe	φ76*3000 mm
Hole diameter	φ90-138 mm
DTH hammer	4"/5"
Rotation torque (max.)	3200 N.m
Feed force	20 kN
Pull up force	45 kN
Feed type	Chain/cylinder
Gradient	25°
Track frame osciliation	+/- 10°
Tramming speed	3 km/h

Key Features

The dual motors rotate the drill bit with higher torque and speed, which can meet the drilling needs of 76 mm drill rod and 130 mm drill bit diameter.

High-quality crawler and piston engines provide more reliable performance and better maneuverability, allowing open-pit mining drilling operations to better adapt to complex ground conditions.

The central control panel is easy to use, which improves the efficiency, safety and comfort of drilling operations.

The new leveling function gives the machine stronger climbing ability and all-terrain performance, enabling it to adapt to various construction environments more effectively. The 420 model can also drill vertical holes on slopes to meet various construction needs.

Product Images

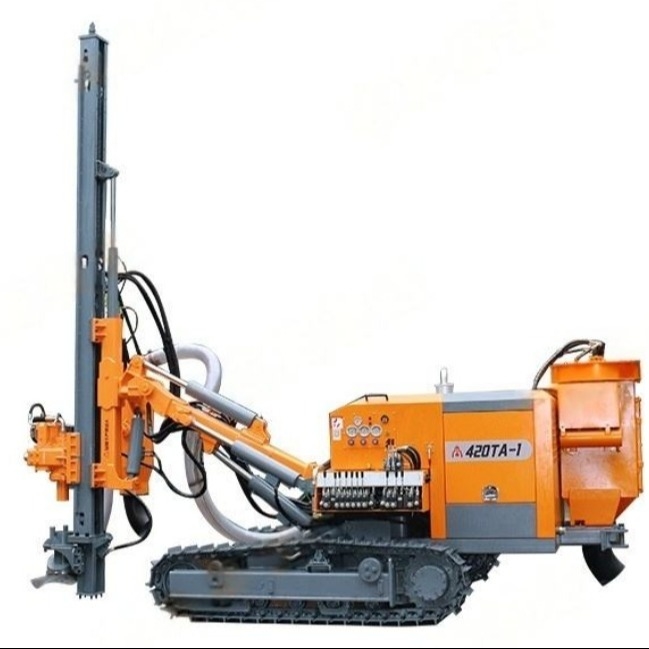

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 0

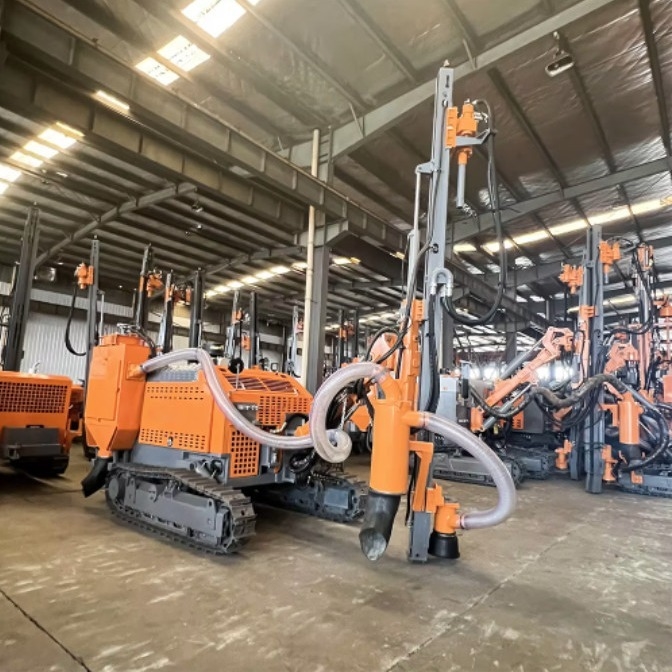

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 1

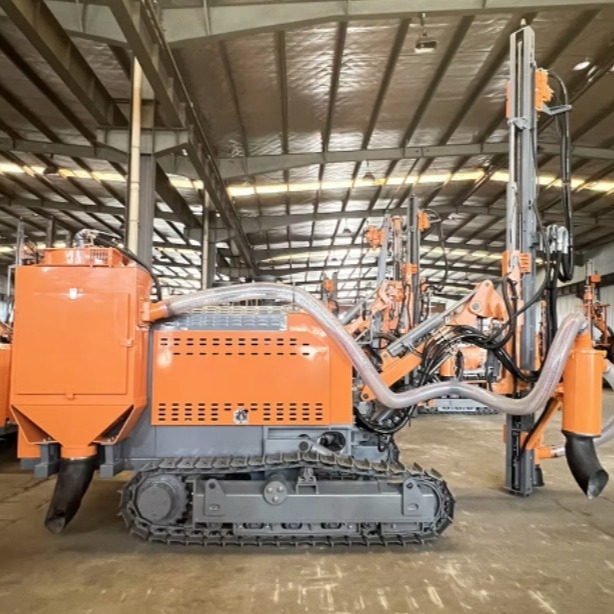

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 2

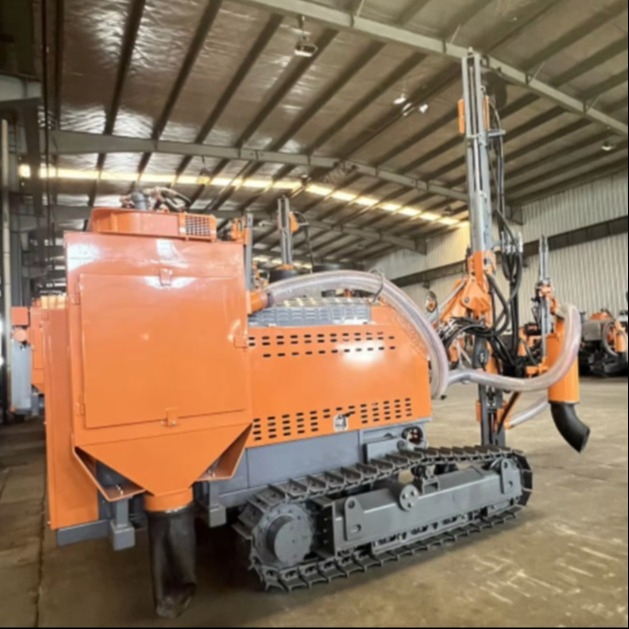

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 3

Hydraulic Surface Down-The-Hole Separated (DTH) Drilling Rig For 3200 N.M Rotation Torque 4
