Name: Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Дом > продукты > Машина для бурения скважин >

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

800m deep water well drilling machine

water well drilling machine for all soil types

heavy-duty water well drilling machine

Place of Origin:

China

Фирменное наименование:

RanCheng

Сертификация:

CE, ISO 9001:2000

Model Number:

RCF800C

Свяжитесь мы

Запрос Цитата

Подробная информация о продукции

Name:

Water Well Drilling Machine

Model:

RCF800C

Geology Drilled:

All kind

Drill System and Operation:

Hydraulic

Max Hole Depth:

800m

Hole Diameter:

140-500m

Diesel Engine:

154KW Cummins

Dimension:

6300×2300×2650mm

Выделить:

800m deep water well drilling machine

water well drilling machine for all soil types

heavy-duty water well drilling machine

Условия оплаты и доставки

Minimum Order Quantity

Цена

Подлежит обсуждению

Packaging Details

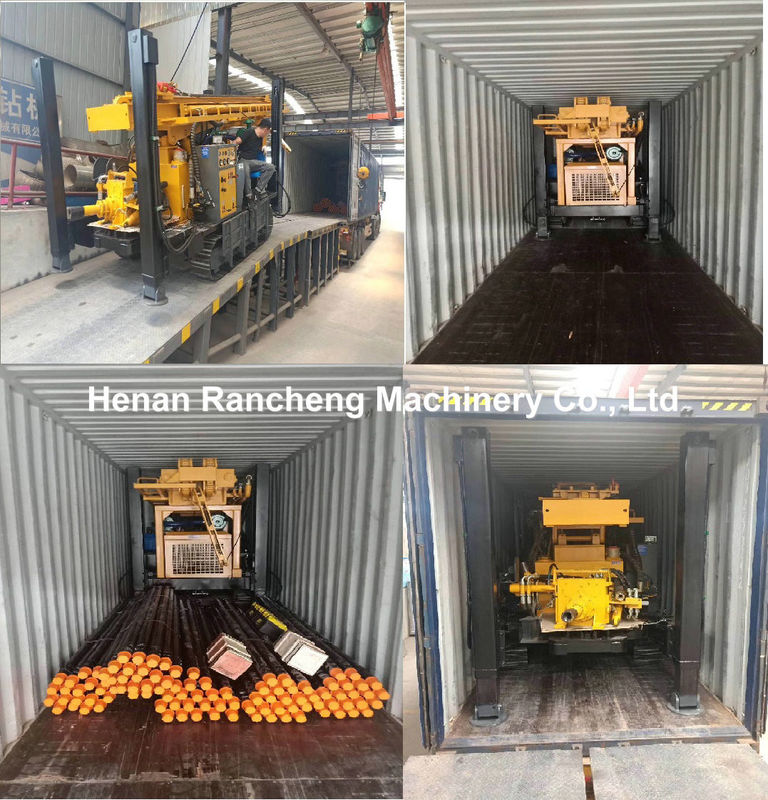

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

Получите самую лучшую цену

Видео

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Получите самую лучшую цену

Видео

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

Получите самую лучшую цену

Видео

Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration

Получите самую лучшую цену

Свяжитесь мы

Контакт теперь

Описание продукта

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

Product Specifications

Attribute	Value
Name	Water Well Drilling Machine
Model	RCF800C
Geology Drilled	All kind
Drill System and Operation	Hydraulic
Max Hole Depth	800m
Hole Diameter	140-500m
Diesel Engine	154KW Cummins
Dimension	6300×2300×2650mm

Machine Introduction

800-meter Water Well Drilling Rig - An Efficient and Reliable Tool for Groundwater Resource Development

This 800-meter water well drilling rig utilizes high-strength steel and an advanced hydraulic system, making it suitable for deep well drilling and easily navigating a variety of geological conditions, including hard rock and sand formations. Equipped with a high-power diesel engine or electric motor, it delivers powerful power and high drilling efficiency, achieving a maximum daily drilling depth of 80-120 meters. Its modular design facilitates transportation and on-site assembly, and its easy-to-operate automated control system reduces labor costs.

It is widely used in agricultural irrigation, mine drainage, and drinking water projects in remote areas, helping to address water shortages. Its durable construction and low failure rate ensure long-term stable operation, making it an ideal choice for deep well drilling.

Core Advantages: Deep drilling capability, high efficiency, strong adaptability, and easy maintenance.

Detailed Specifications

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Key Features

The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life
The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost
It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface
It is very powerful for drilling different layers, especially for hard rocks

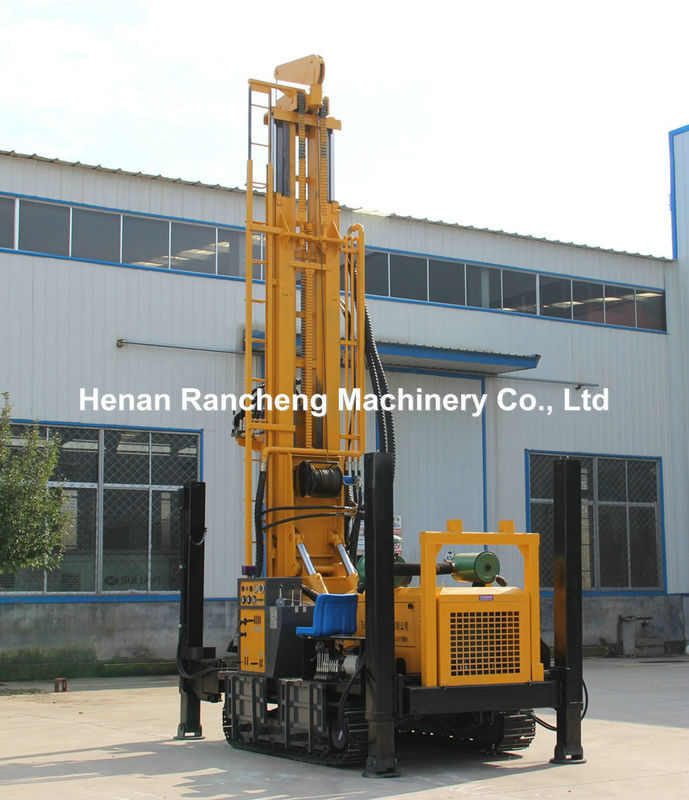

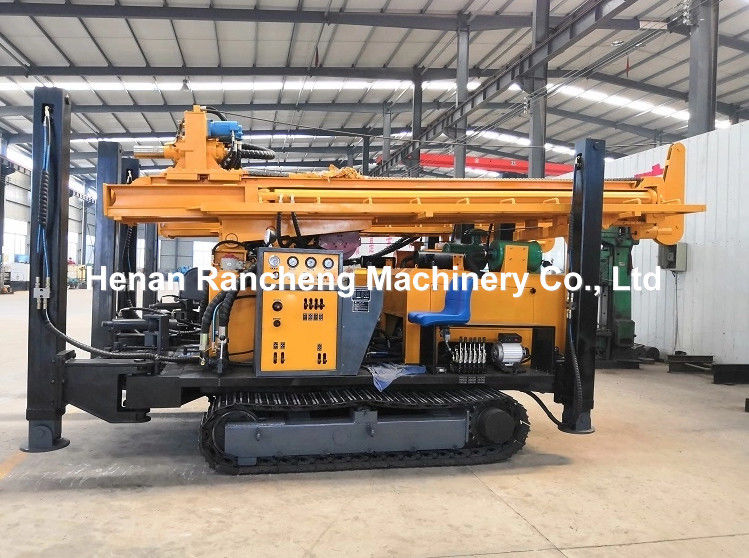

Machine Gallery
