200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine

200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine

200m pneumatic DTH crawler drilling rig

300m diesel water well drilling machine

crawler drilling rig for water wells

Place of Origin:

China

Фирменное наименование:

RanCheng

Сертификация:

CE,ISO 9001:2000

Model Number:

RCF200C

Свяжитесь мы
Запрос Цитата
200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine
200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine
Подробная информация о продукции
Name:
Full hydraulic water well drilling rig
Model:
RCF200C
Drill depth:
200m
Water Drilling Rig Weight:
58kgs
Specification:
4X1.75X2.45m
Выделить:

200m pneumatic DTH crawler drilling rig

,

300m diesel water well drilling machine

,

crawler drilling rig for water wells

Условия оплаты и доставки
Minimum Order Quantity
1
Цена
USD16000-USD19000
Packaging Details
It can be shipped by one 20" container
Delivery Time
15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
СОБЩЕННЫЕ ПРОДУКТЫ
Хорошая цена Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins онлайн Видео

Water Well Drilling Machine For 800m Deep Drilling In All Types Of Soil 154KW Cummins

Получите самую лучшую цену
Хорошая цена 200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale онлайн Видео

200m Borehole Drilling Machine/Borewell/Hydraulic Crawler Mounted Pneumatic Water Well Drilling Rig Machine For Sale

Получите самую лучшую цену
Хорошая цена Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil онлайн Видео

Water Well Drilling Machine for 800m Deep Drilling in All Types of Soil

Получите самую лучшую цену
Хорошая цена Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration онлайн Видео

Industrial-Grade 280M Diesel Hydraulic Drill Rig Designed for Fast Penetration

Получите самую лучшую цену
Свяжитесь мы
Контакт теперь
Описание продукта

200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine

Product Description

RCF200C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.





Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.







Technical Parameters



Model RCF200C
Bore diameter(Hammer) 90-350mm
Bore depth 200m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 3m
Push force 4T
Lifting force 12T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 18m/min
Fast feeding speed 35m/min
Max torque of the rotary 3500-4800Nm
Rotary speed 45-70r/min
Mud Pump flow 250L/min (option)
High hydraulic leg 1.4m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4000X1800X2300mm
Weight 5000Kg
Diesel engine

58KW Yuchai



Application



Our water well drilling rigs adopt the latest models and advanced hydraulic technology, with the characteristics of low energy consumption, high torque, and convenient well position steering. They are mainly used for drilling resources exploration, hydrological wells, civil water wells, agricultural irrigation and other projects.

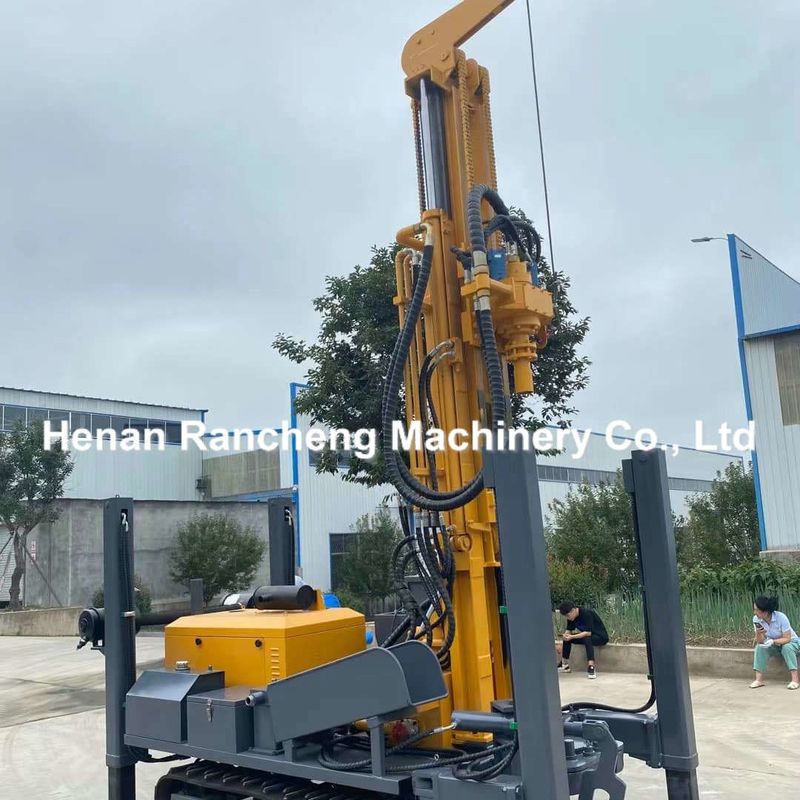

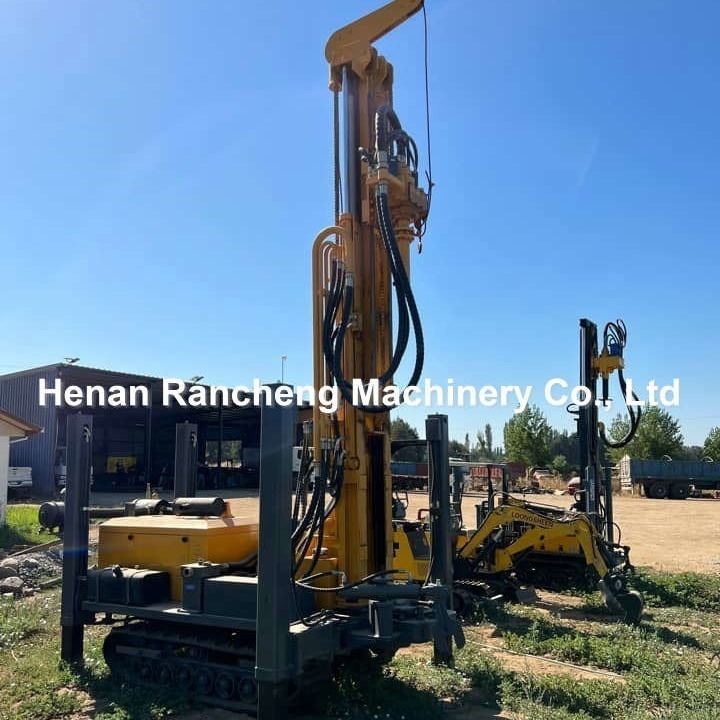

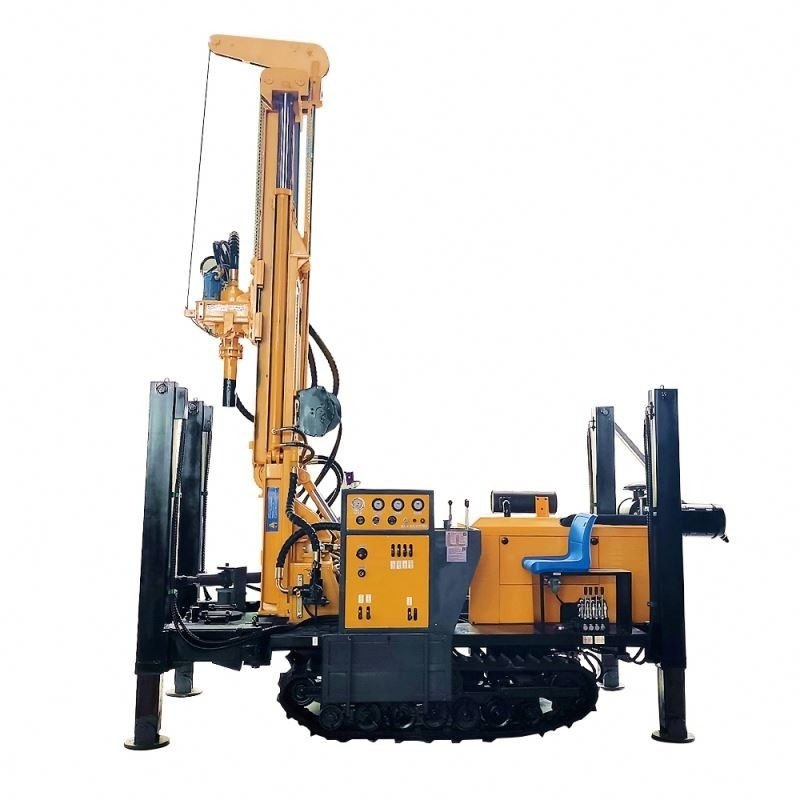

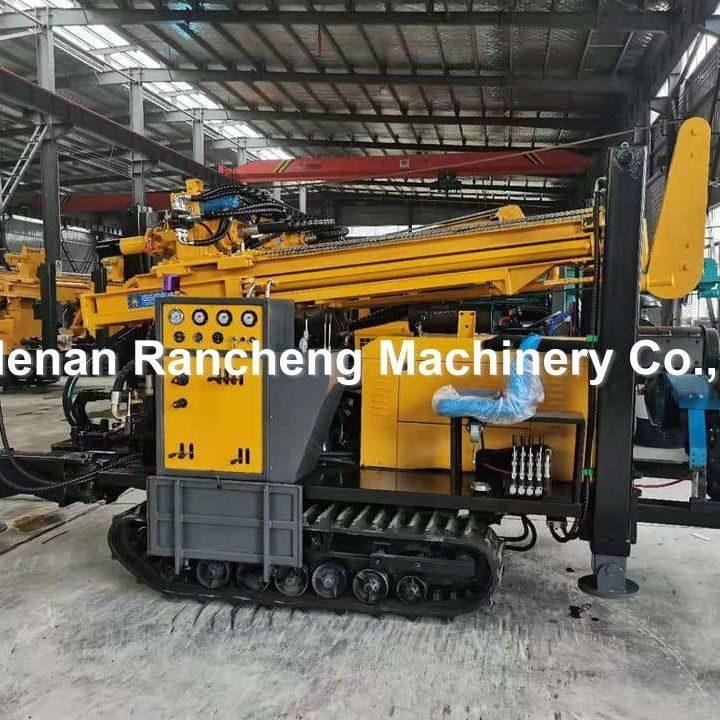

The Machine picture



200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 0200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 1

200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 2

200m 300m drilling depth pneumatic DTH crawler drilling rig for water well drilling rig, powered by diesel engine 3
