Hydraulic Bored Rotary Drilling Rig 95KW Yuchai Engine 15m Piling Depth 165T Weight

Hydraulic Bored Rotary Drilling Rig 95KW Yuchai Engine 15m Piling Depth 165T Weight

Machine Introduction

The RCQ515M hydraulic pile driver boasts a compact and lightweight structure, a maximum drilling depth of 15 meters, and compatibility with a wide range of drilling tools. Pile hole diameters range from 500 to 1200 mm. Its efficient drilling capabilities allow for rapid transfer to the next work site upon completion, combining flexibility, convenience, and efficiency. It is primarily used for piling operations in soft soil foundations, ports, bridges, reservoirs, hydropower stations, and defense projects, and is widely used in rotary pile driving, pile foundation engineering, drilling, geological exploration, civil engineering, and other fields. The RCQ515M boasts a compact structure and powerful power, adapting to operating environments in confined spaces and harsh terrain. Equipped with a reliable 95-kW Yuchai engine, it is designed for heavy-duty drilling operations and is ideal for infrastructure projects requiring high precision and speed.

Technical Parameters

Machine Advantages

The drilling rig offers a wide range of drilling diameters, from 500 to 1,200 mm, and a maximum drilling depth of 15 meters. Equipped with a 95 kW Yuchai diesel engine, it provides reliable drilling power. Its torque of 45 kN/m and rotation speed of 17 to 45 rpm ensure efficient drilling operations. The maximum pressure cylinder thrust of 80 kN, the maximum lifting force of 100 kN, and the maximum stroke of 2,000 mm ensure efficient pressure and thrust. The main winch offers a maximum lifting force of 120 kN and a single cable speed of up to 60 m/min. The auxiliary winch can also provide a maximum lifting force of 15 kN and a single cable speed of 60 m/min. Its travel speed of 3 km/h, maximum climbing capacity of 30° and minimum ground clearance of 400 mm guarantee stability and adaptability on different terrains. The machine offers an excellent working pressure of 32 Mpa and is lightweight and easy to transport. Its weight is 16.5 tons, its transport dimensions are 8 x 2.3 x 3.3 meters and its working dimensions are 5.7 x 2.3 x 9 meters.

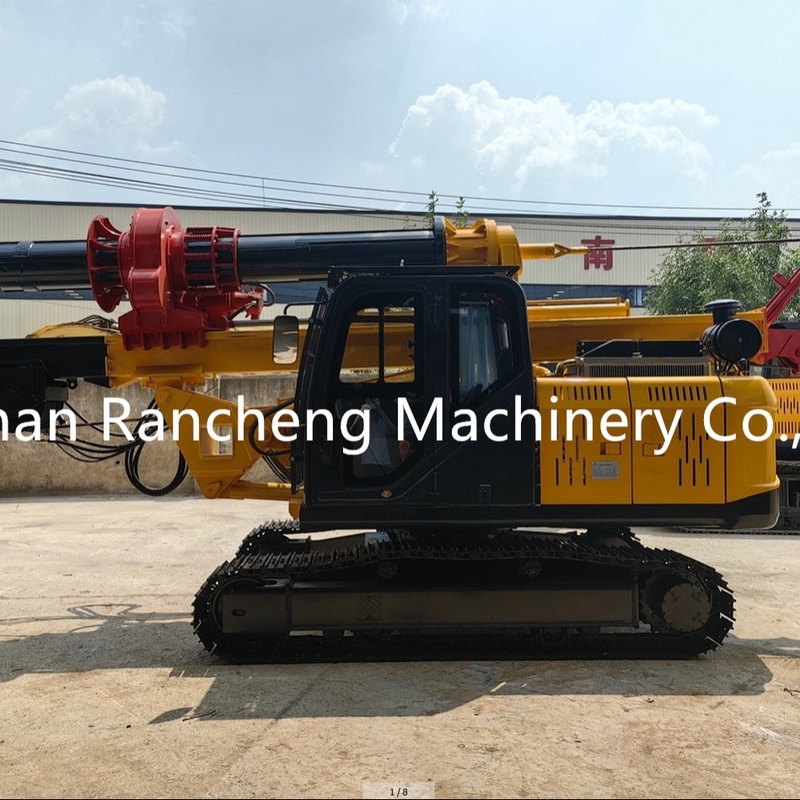

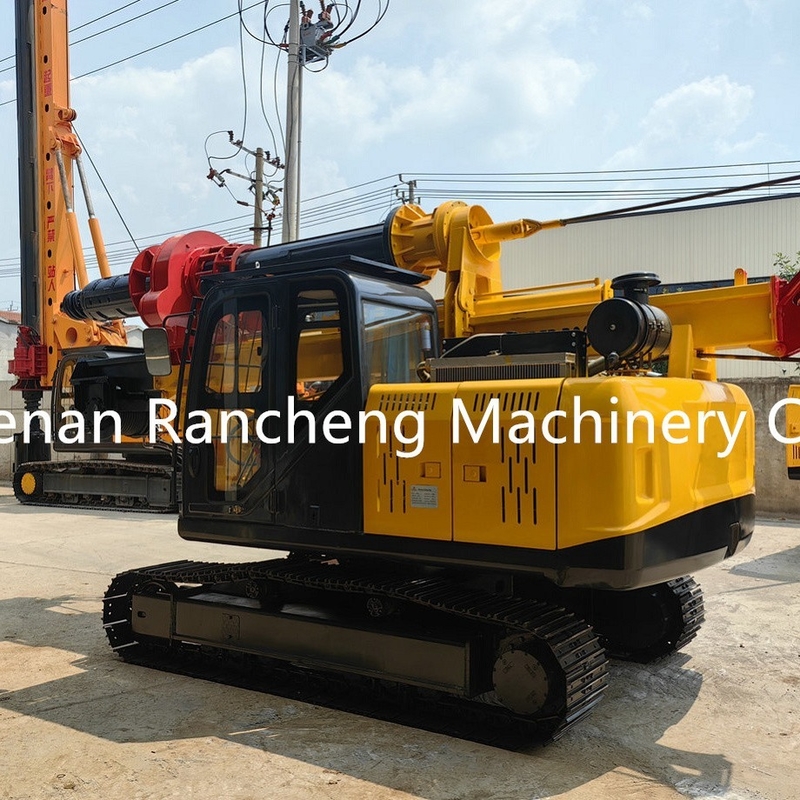

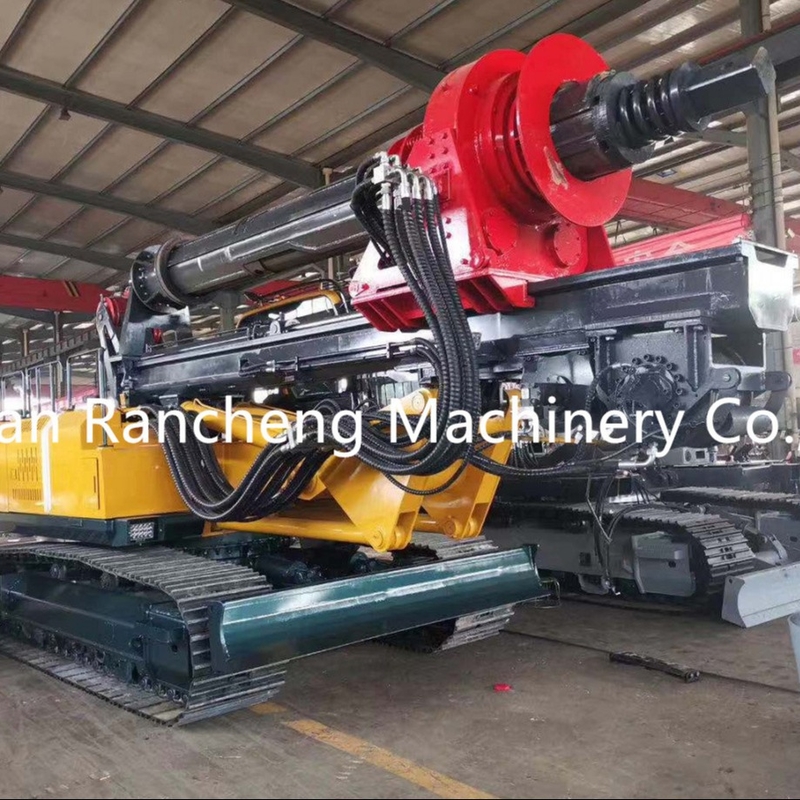

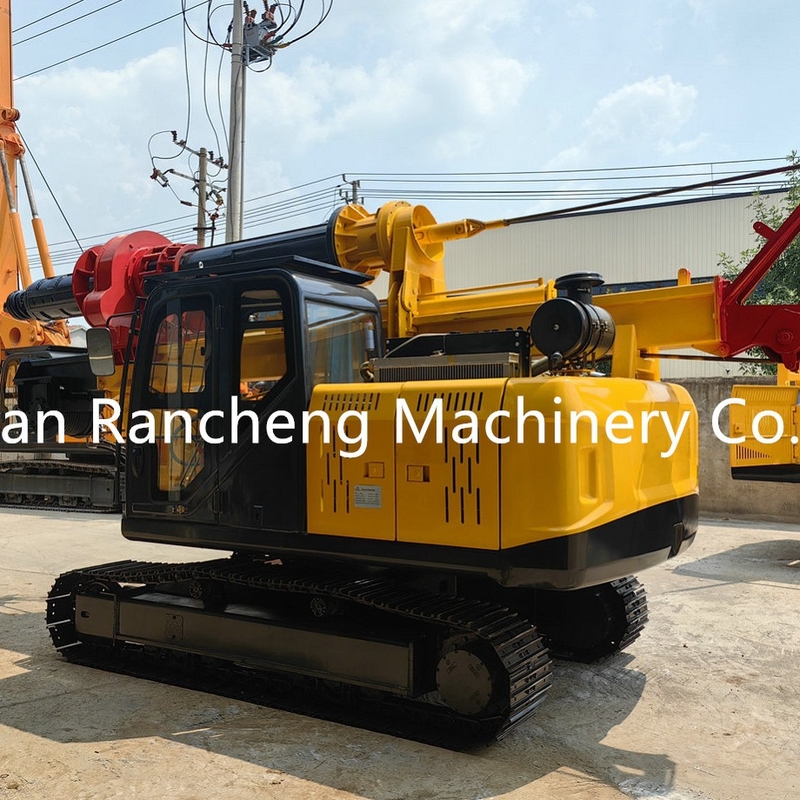

Machine Pictures
