Product Description

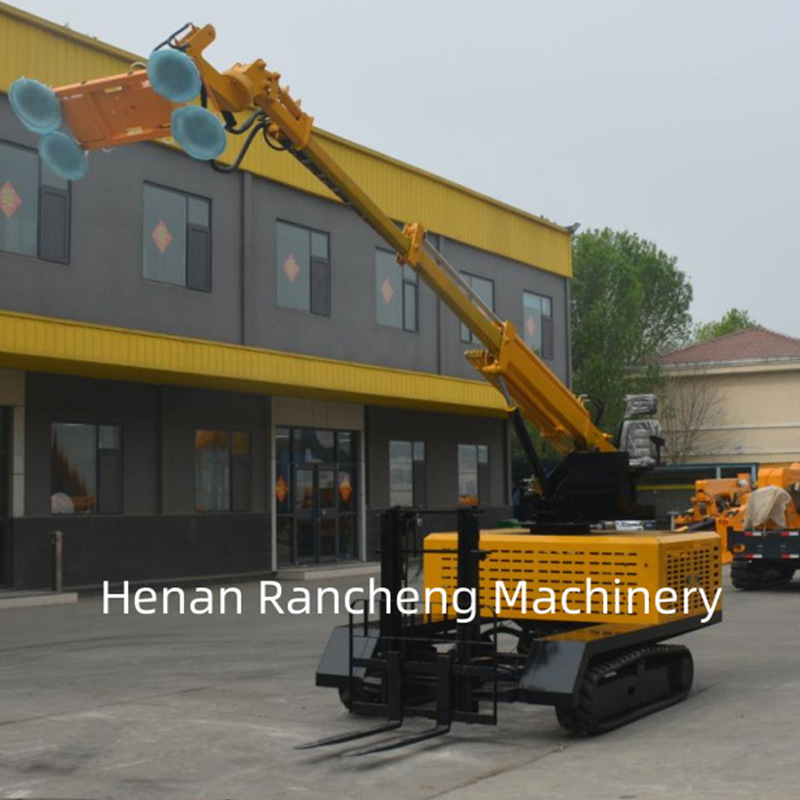

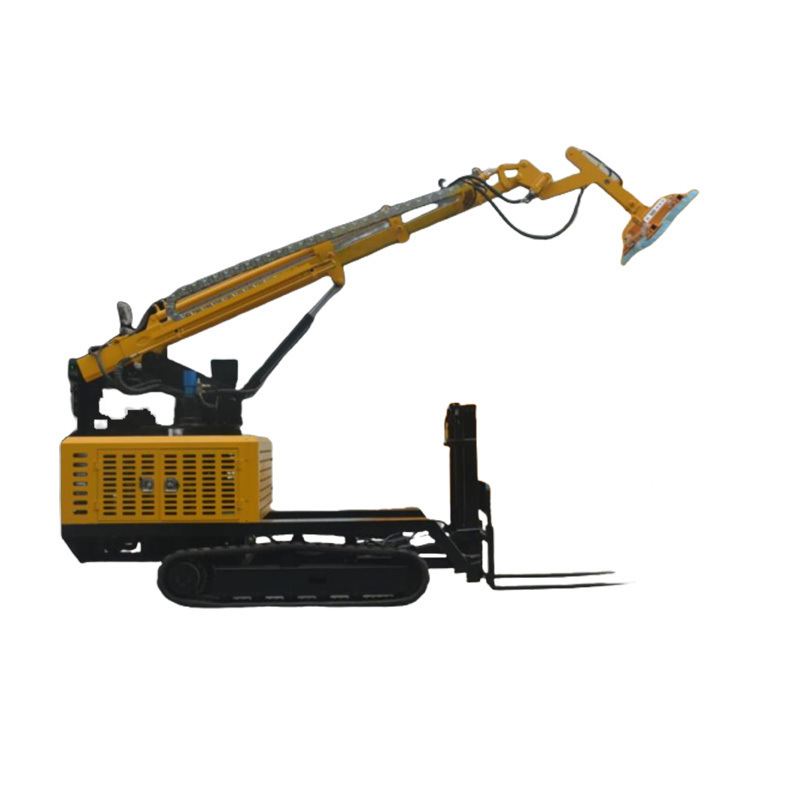

Our solar panel installation equipment is built on a tracked engineering-grade platform, ensuring smooth movement on mud, puddles, rocky surfaces, and slopes up to 30°.

It integrates a mechanical arm with adjustable vacuum suction cups that securely lift and place panels without damaging the surface. The system offers 360° rotation, remote control up to 30 meters, and compatibility with 1.5-ton forklifts for easy material transport.

Each unit can be operated by just two workers, installing up to 400 panels per eight-hour shift—three times the efficiency of manual installation teams.

technical specification

Features

• Tracked Mobility: Stable tracked platform ensures smooth movement and reliable operation on uneven terrain.

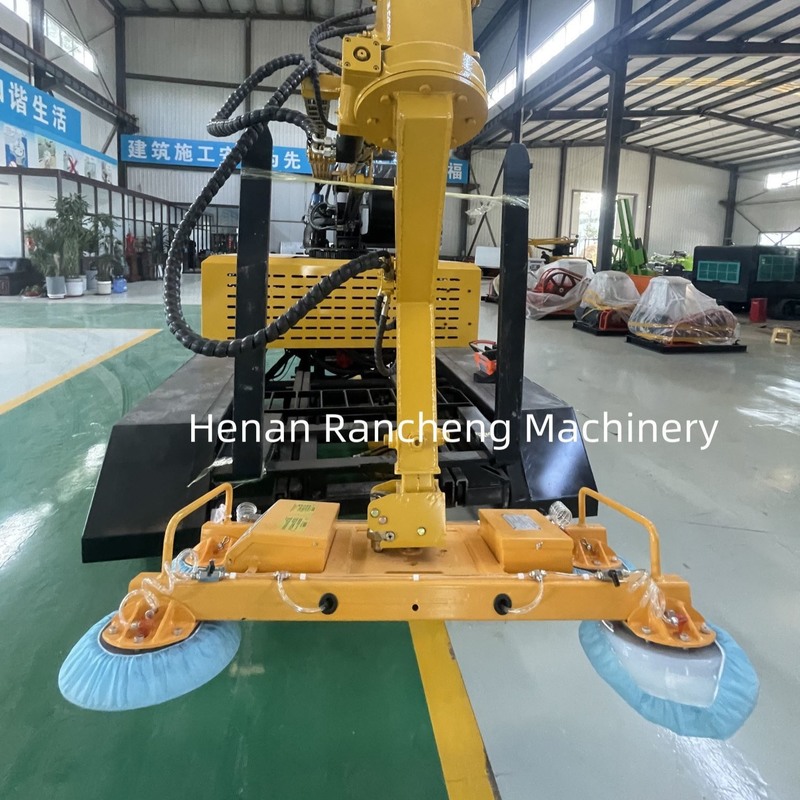

• Vacuum-Assisted Lifting: Four vacuum suction pads with soft silicone surfaces allow safe, precise panel handling without damage.

• Flexible Positioning: 360° rotating pads and telescopic arm maintain accurate alignment and protect panels during installation.

• Hydraulic Power & Remote Control: Main hydraulic system provides steady motion, with remote operation up to 30 meters for safer control.

• Safety & Efficiency: Built-in buffers protect fragile components, while ergonomic design reduces worker fatigue and improves installation speed.

Application

This equipment is suitable for solar installation companies, electrical contractors, and construction firms managing utility-scale or remote solar projects. It simplifies the installation process for large or hard-to-access solar arrays, allowing workers to transport and place panels safely, efficiently, and with minimal physical strain.

FAQ

1. What is the maximum weight and size of solar panels the equipment can handle?
Our system can safely lift and transport panels up to 100 lbs per vacuum pad. Panel size compatibility depends on pallet configuration and arm reach, suitable for most standard utility and commercial panels.

2. How is worker safety ensured during operation?
The equipment is built with safety buffers, soft silicone vacuum pads, and stable tracked movement. Panels remain securely held during lifting, rotating, and placement, minimizing the risk of injury or panel damage.

3. Can this equipment operate in remote or uneven terrain?
Yes. The tracked platform provides stability on rough, sloped, or uneven surfaces, making it suitable for remote solar installations.

4. How is the equipment powered and controlled?
The hydraulic power system is driven by the main machine, and operation is controlled via the integrated main controller. The equipment supports remote control operation up to 30 meters, allowing operators to position panels safely from a distance.

5. Does it reduce labor requirements?
Absolutely. The equipment reduces manual lifting and panel handling, lowering worker fatigue and minimizing the need for large installation teams.

6. How precise is the panel placement?
The robotic arm, 360° rotating alignment pads, and 90° pallet rotation ensure panels are positioned accurately and parallel, even in tight or awkward installation spaces.

7. Can it handle fragile or high-value panels safely?
Yes. Soft silicone vacuum pads, safety buffers, and controlled hydraulic movement protect panels from scratches, cracks, or misalignment during handling.

8. Is the equipment easy to move around the site?
The tracked platform allows smooth mobility across the site, and the arm and pallet system enable quick repositioning of panels with minimal

manual effort.

9. What maintenance is required?
Regular hydraulic system checks, vacuum pad inspections, and cleaning of mechanical joints are recommended. Our team provides guidance for routine maintenance to ensure reliable long-term performance.


10. Can this equipment be customized for specific site needs?
Yes. Rancheng can adapt configurations, including arm reach, vacuum pad number, pallet handling, and remote control options, to suit different panel types, site layouts, or project scales.
