Name: Fully hydraulic 800-meter water well drilling rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF800C
Availability: InStock

Дом > продукты > Машина для бурения скважин >

Fully hydraulic 800-meter water well drilling rig

fully hydraulic water well drilling rig

800-meter water well drilling machine

hydraulic well drilling rig with warranty

Место происхождения:

Китай

Фирменное наименование:

RanCheng

Сертификация:

CE, ISO 9001:2000

Номер модели:

RCF800C

Свяжитесь мы

Запрос Цитата

Подробная информация о продукции

Имя:

Буровой машины для воды

Модель:

RCF800C

Геология просверлена:

Все виды

Буровая система и работа:

Гидравлический

Максимальная глубина отверстия:

800 м

Диаметр отверстия:

140-500 м

Дизельный двигатель:

154 кВт Камминс

Измерение:

6300 × 2300 × 2650 мм

Выделить:

fully hydraulic water well drilling rig

800-meter water well drilling machine

hydraulic well drilling rig with warranty

Условия оплаты и доставки

Количество мин заказа

Цена

Подлежит обсуждению

Упаковывая детали

Он может быть отправлен в один 40 "контейнера

Время доставки

10-15 рабочих дней

Условия оплаты

Т/Т, Вестерн Юнион

Поставка способности

100sets в месяц

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Fully hydraulic 800-meter water well drilling rig

Получите самую лучшую цену

Видео

Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling

Получите самую лучшую цену

Видео

Fully hydraulic crawler-type 400-meter water well drilling rig 140 - 350mm Drilling Dia

Получите самую лучшую цену

Видео

Гусеничная буровая установка для водяных скважин RCF260C, гидравлическая роторная буровая установка для скважин, дизельный двигатель 70 кВт, буровая установка для бурения водяных скважин

Получите самую лучшую цену

Свяжитесь мы

Контакт теперь

Описание продукта

Fully hydraulic 800-meter water well drilling rig

Machine Introduction

This drilling rig is a high-performance piece of equipment specifically designed for deep-hole drilling operations. Its core utilizes a fully hydraulic drive system, matched with a high-torque power head and feed system, delivering powerful output and stepless adjustment of speed and pressure to easily overcome complex geological conditions such as hard rock formations.

The entire machine integrates electro-hydraulic control for centralized and convenient operation, and is equipped with a hydraulic automatic unhooking device, significantly improving drilling efficiency and safety. Employing a modular or vehicle-mounted chassis design, it offers flexible relocation and adaptability to harsh field conditions. Primarily used in large-scale projects such as ultra-deep water wells, geothermal exploration, and mineral exploration, it is an ideal solution for efficiently and reliably completing deep-hole drilling tasks.

Specification

Model	RC800C
Drilling way	Both mud pump drilling and air DTH drilling
Geology drilled	All kind
Drill system and operation	Hydraulic
Diesel engine	154KW Cummins
Max hole depth	800m
Hole diameter	140-500mm
Air consumption	17-42m³/min
Length of drilling pipe	1m/2m/3m/6m
Diameter of drilling pipe	102/108/114mm
Total Weight	13ton
Dimension (L * W * H)	6300×2300×2650mm

Applications

1. The chassis of the drilling rig adopts a professional traveling motor with a gearbox, which has a longer service life;
2. The gearbox is integrally formed, double motors, stronger power, larger torque, more durable, and low maintenance cost;
3. It adopts professional excavator chassis, which is sturdy and durable, bears heavy load, wide chain plate, and has little damage to hard road surface;
4. big power ensure the deep drilling

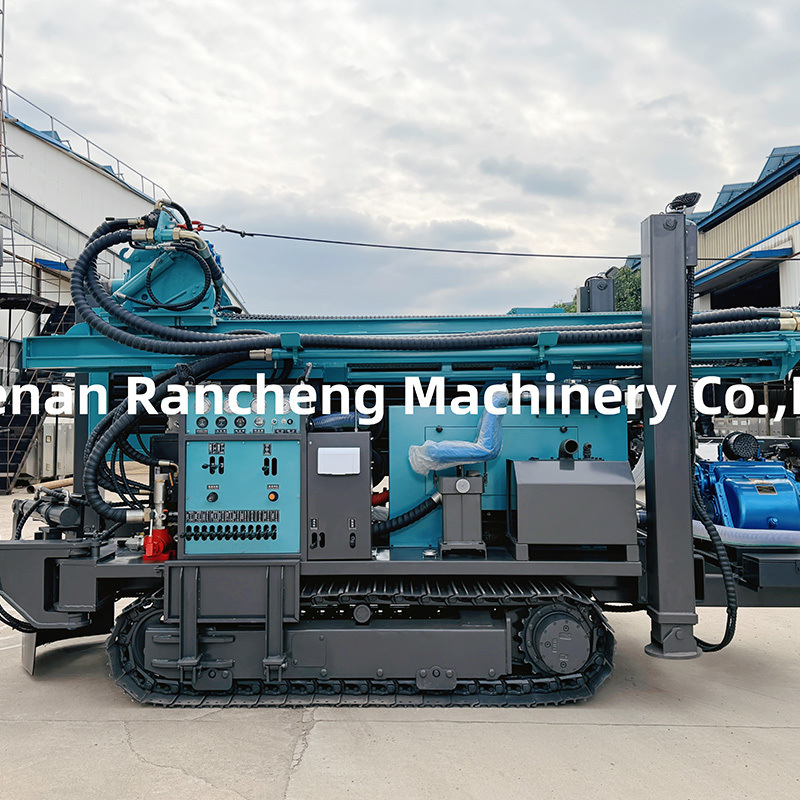

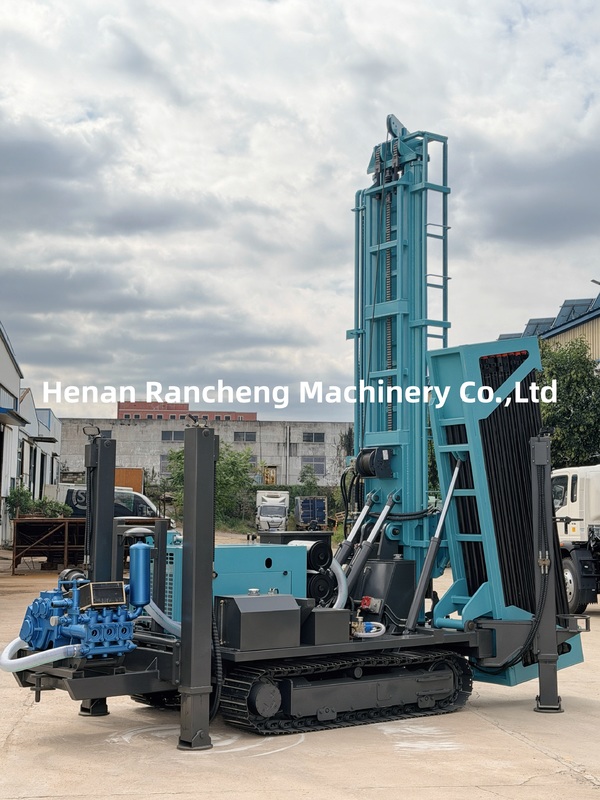

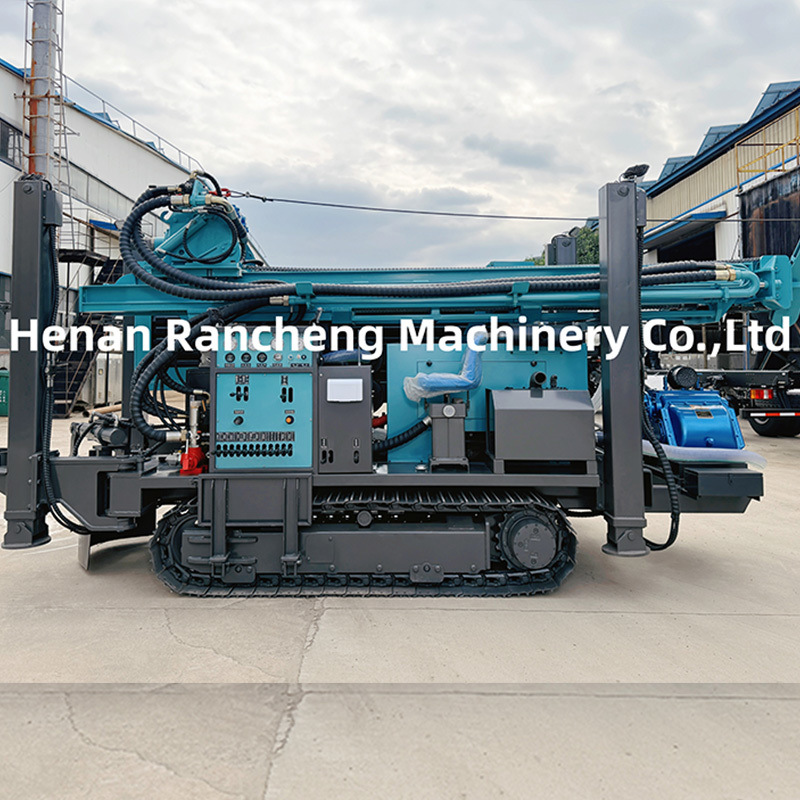

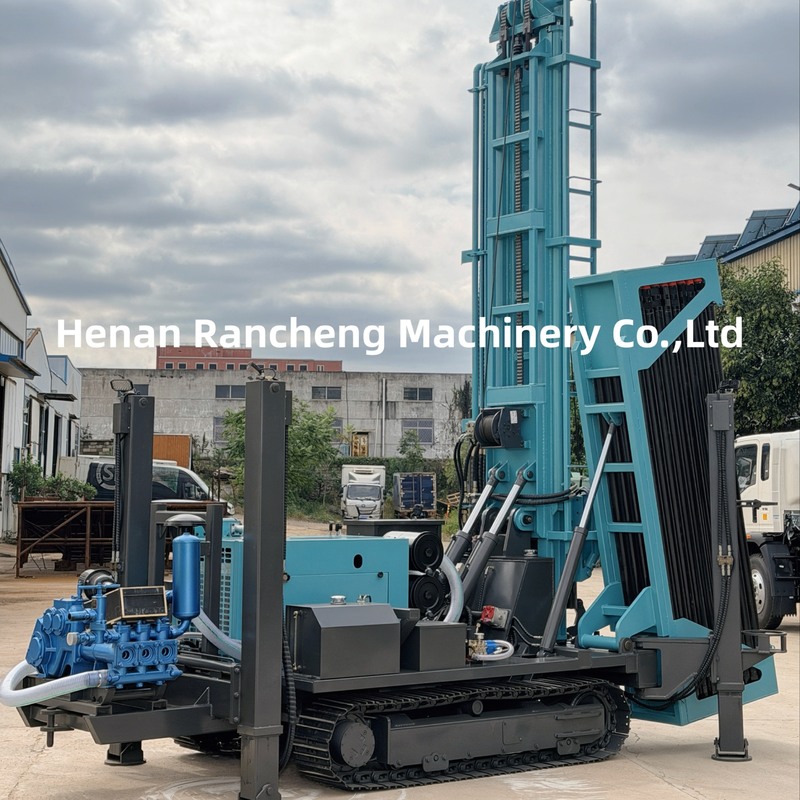

Machine Pictures

Fully hydraulic 800-meter water well drilling rig 0
