RCF150S Water Well Drilling Rig With Mud Pump Is A Best-Selling Product

RCF150S Water Well Drilling Rig With Mud Pump Is A Best-Selling Product

Products Description

The RCF150S portable drilling rig can drill to a depth of up to 150 meters, is compatible with 90–300mm drill bits, and features a dual rotary motor top drive design, supporting both mud pump and air compressor drilling methods.

The equipment is equipped with a 42kW diesel engine and hydraulic rubber track walking, making it highly mobile and easy to operate. The machine measures 2300×1700×1900mm and weighs 2300kg, making it compact, lightweight, and easy to relocate.

It can efficiently drill into clay, soil, rock, and hard rock formations. When using an air compressor, the drilling speed in hard rock can reach 20–25 meters per hour.

It is suitable for various hydrological drilling projects, including agricultural irrigation wells, engineering water wells, geothermal wells, and industrial drilling.

Machine Specifications


Machine Advantages


1. Compact size and lightweight, easy to install, suitable for operation within existing mine roadways and for drilling at 0-90 degree angles on the surface without damaging the mine structure.

2. Convenient and safe operation, featuring centralized control via a control console, supporting stepless speed regulation, and mechanized torsion unloading of the drill rod, reducing labor intensity and improving efficiency.

3. Hollow shaft design, drill rod length is not limited by rotational speed, allowing for 360° arbitrary tilting drilling, eliminating the need for bulky equipment and enabling flexible layout.

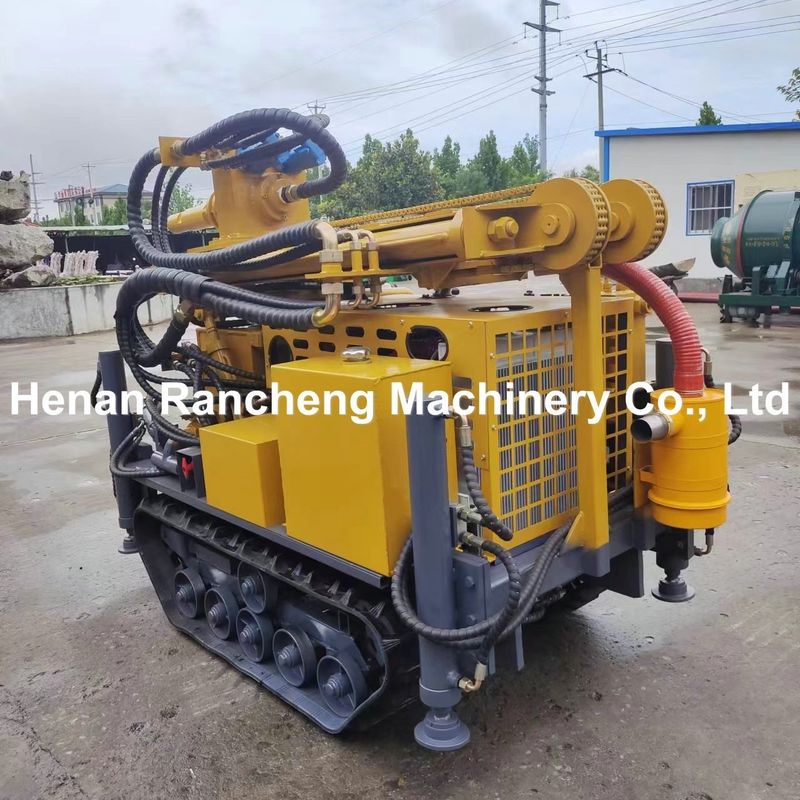

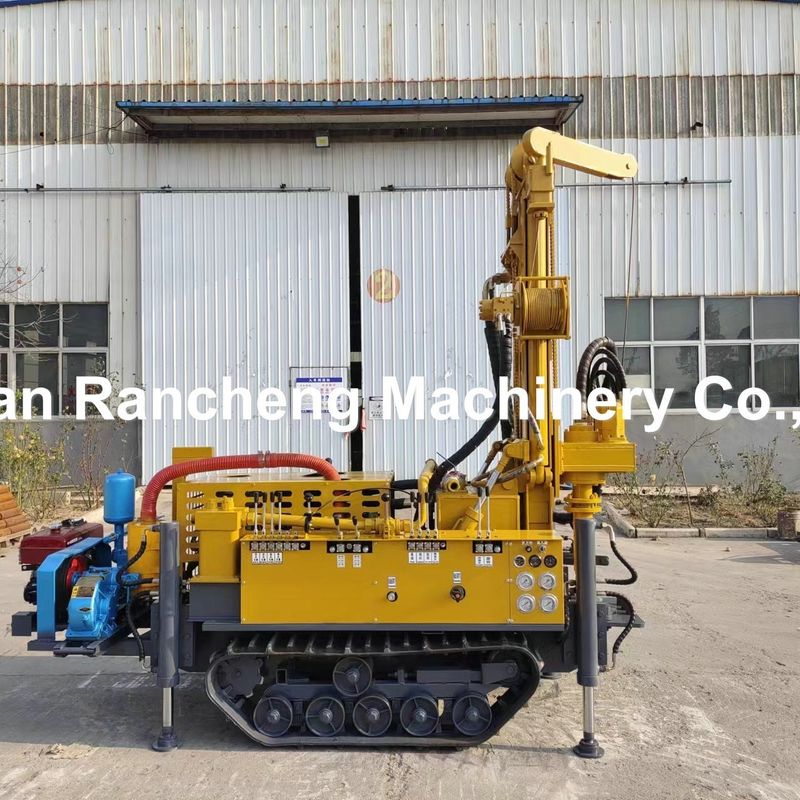

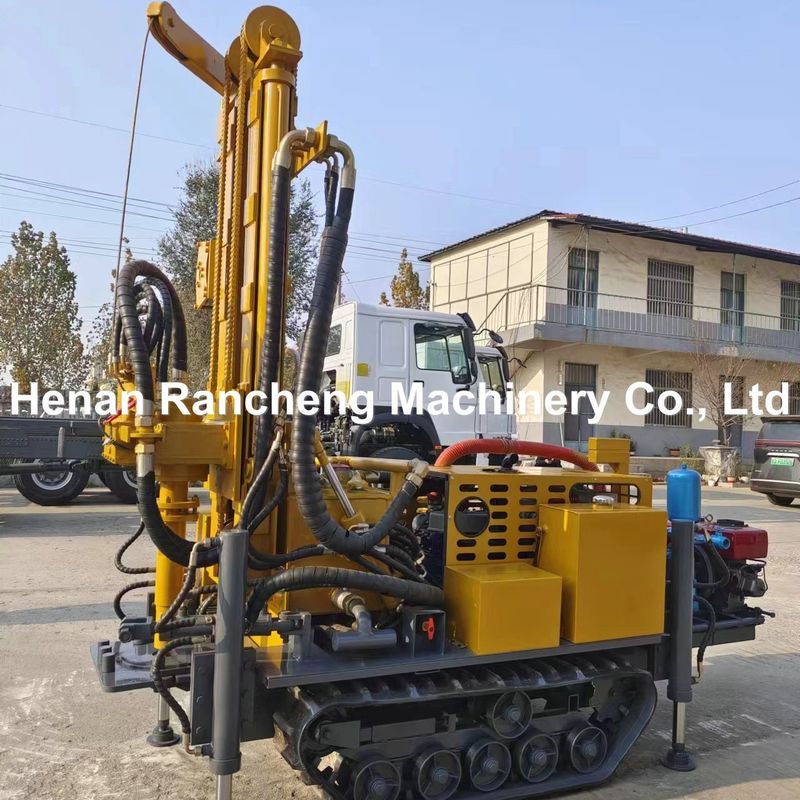

Machine Pictures


Company Information

Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

Transportation

RCF150S can be loaded into a 20-foot container and transported by sea
