Name: 160m Small Portable Water Well Drilling Rig Machine With 35HP Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS260C
Price: 3500 USD
Availability: InStock

Дом > продукты > Машина для бурения скважин >

160m Small Portable Water Well Drilling Rig Machine With 35HP Engine

small portable water well drilling machine

35HP water well drilling rig

160m depth water well drilling machine

Место происхождения:

Китай

Фирменное наименование:

Rancheng

Сертификация:

Номер модели:

RCS260C

Свяжитесь мы

Запрос Цитата

160m Small Portable Water Well Drilling Rig Machine With 35HP Engine

Подробная информация о продукции

Состояние:

Новый

Масса:

4000 кг

Гарантия:

Один год

тип:

Гидравлический

Предоставляется послепродажное обслуживание:

Круглосуточное обслуживание в чате онлайн и по телефону. 2. Пожизненная и бесплатная техническая под

Использование:

буровая установка для водяных скважин

Тип мощности:

Дизельный двигатель

Размер(л*ш*ч):

2300*1080*2000

Мощность (Вт):

25 л.с.

Глубина бурения:

150

Приложение:

Хорошо воды

Выделить:

small portable water well drilling machine

35HP water well drilling rig

160m depth water well drilling machine

Условия оплаты и доставки

Количество мин заказа

Цена

3500

Упаковывая детали

Деревянные ящики

Время доставки

7 рабочих дней

Условия оплаты

Л/К, Т/Т

СОБЩЕННЫЕ ПРОДУКТЫ

Видео

Контакт теперь

Описание продукта

Specifications

Model of drilling machine	RCS260C
Walking way	Rubber crawler mounted
Drilling machine overall dimension(mm)	230010802000
Weight of Drilling machine (kg)	1000
Drill rod diameter (mm)	Ø64
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	160
Diesel Motor Power (Hp/kw)	35HP /25.8KW
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Within Ø 450mm
Stroke distance (mm)	2000
Hosting capacity (kg)	4000KG

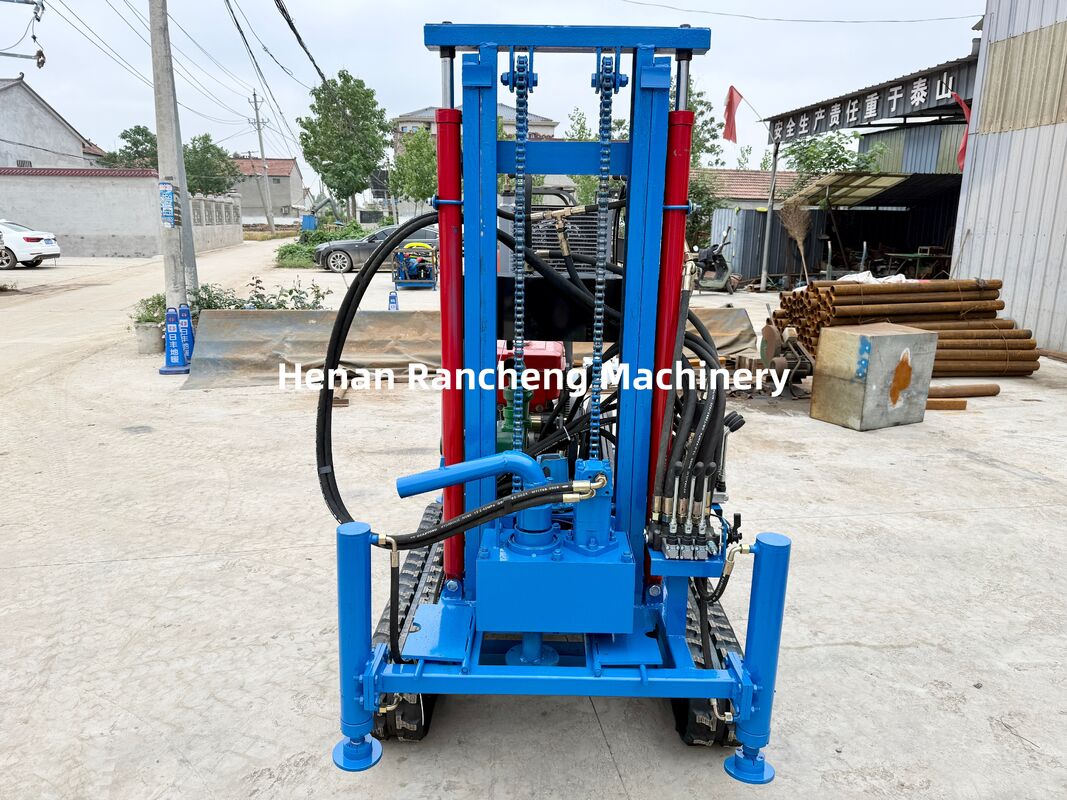

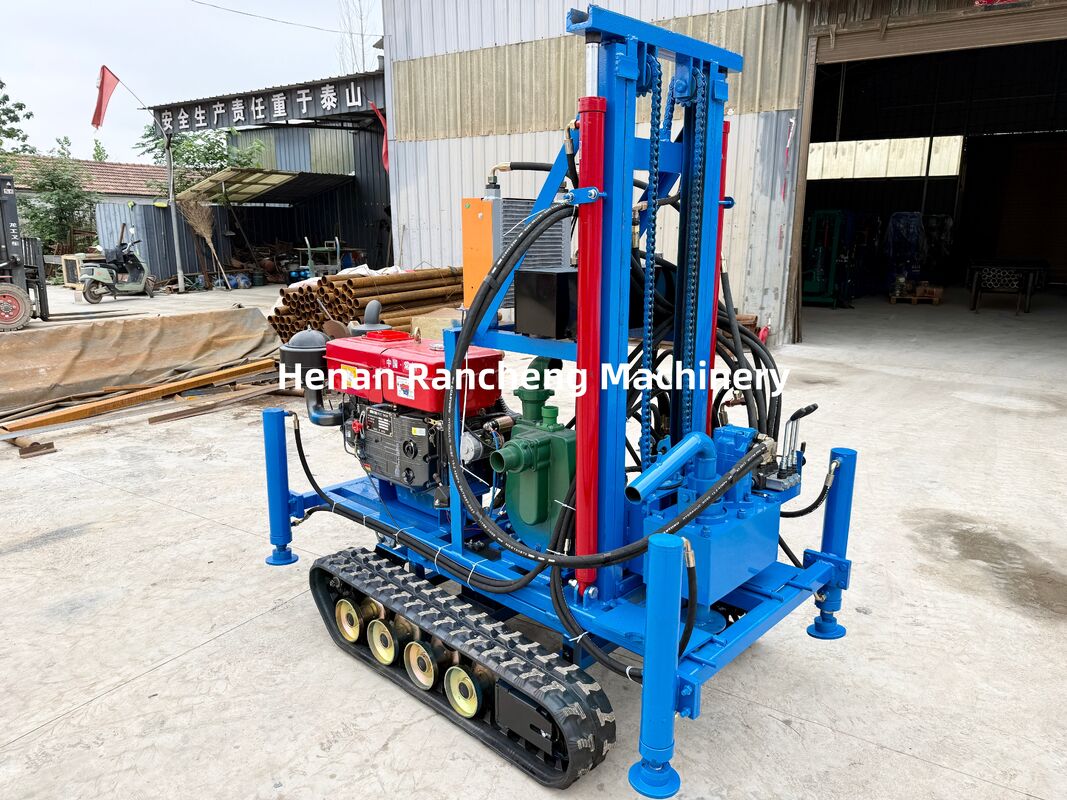

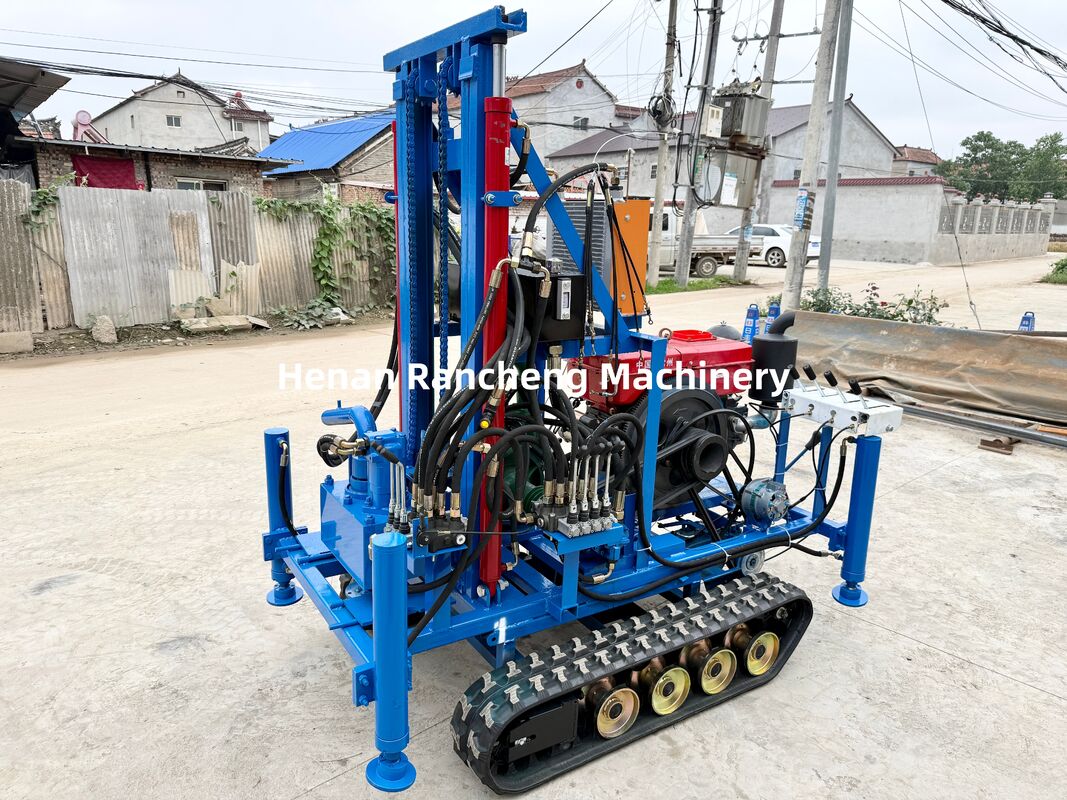

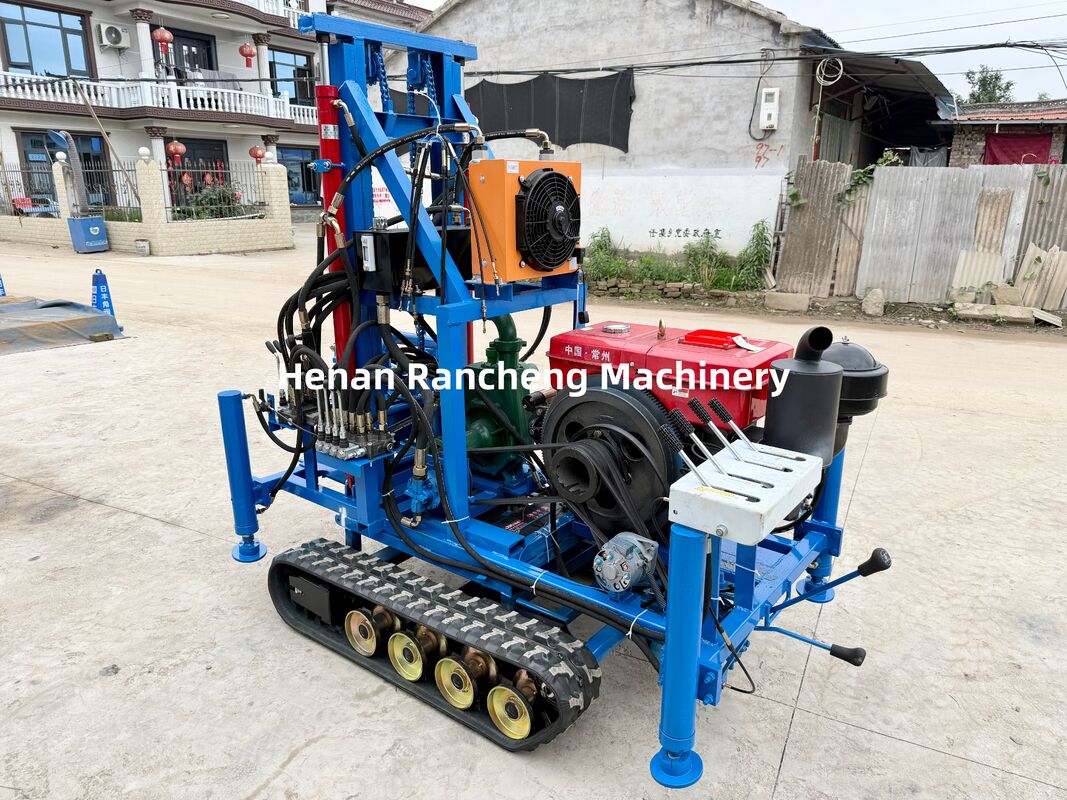

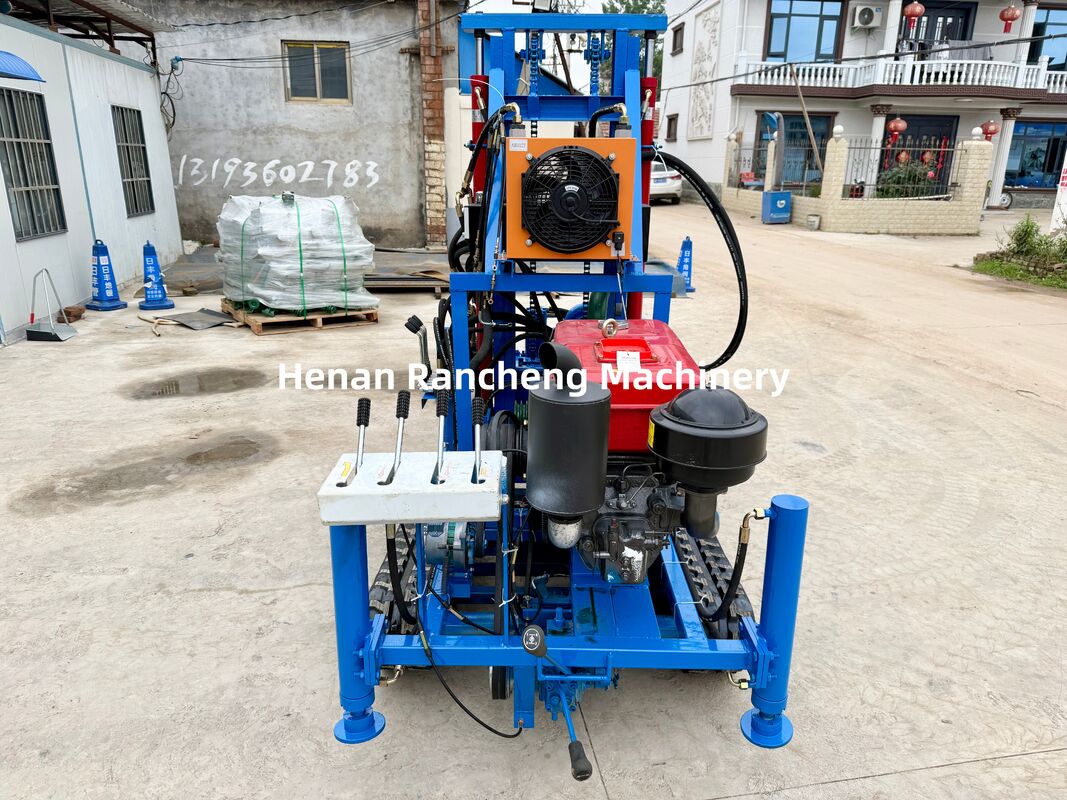

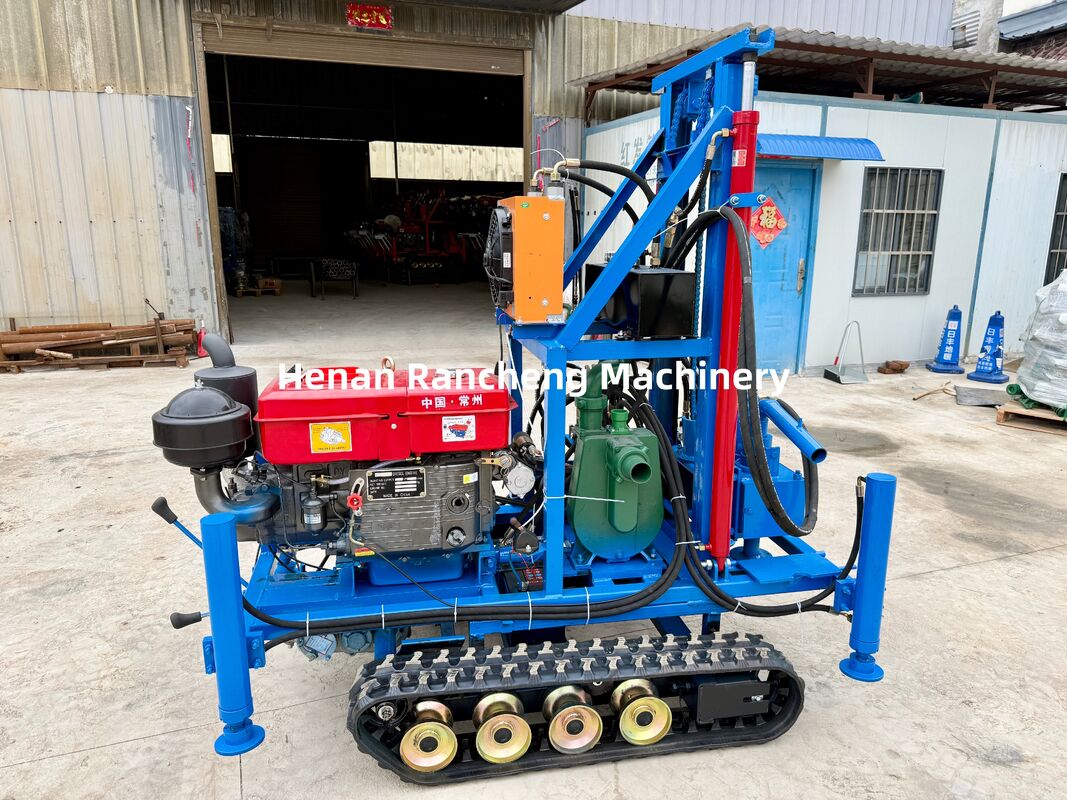

RCS260C small hydraulic rubber crawler mounted water drilling rig

I. Applications

This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 160m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.

II. Features and Advantages

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.

Тэги：

300 м глубина скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины скважины

Получите самую лучшую цену

Отправьте запрос непосредственно нам

160m Small Portable Water Well Drilling Rig Machine With 35HP Engine

small portable water well drilling machine

35HP water well drilling rig

160m depth water well drilling machine

small portable water well drilling machine

35HP water well drilling rig

160m depth water well drilling machine

Specifications

Model of drilling machine

RCS260C

Walking way

Rubber crawler mounted

Drilling machine overall dimension(mm)

2300*1080*2000

Weight of Drilling machine (kg)

1000

Drill rod diameter (mm)

Ø64

Drill rod length(mm)

1500

Rod change method

Full automatic screw thread

Drilling depth(m)

160

Diesel Motor Power (Hp/kw)

35HP /25.8KW

Drilling method

Percussive and rotating type

Drilling hole diameter(mm)

Within Ø 450mm

Stroke distance (mm)

2000

Hosting capacity (kg)

4000KG

RCS260C small hydraulic rubber crawler mounted water drilling rig

I. Applications

II. Features and Advantages

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.

230010802000
