Technical parameters
|
Bore diameter(hammer)
|
90-300mm
|
|
Bore depth
|
150m
|
|
Air consumption
|
17-31m³/min
|
|
Air pressure
|
1.7-.2.5Mpa
|
|
Pipe diameter
|
76mm/89mm
|
|
Pipe length
|
3m
|
|
Push force
|
4T
|
|
Lifting force
|
12T
|
|
Lifting speed
|
2.5m/min
|
|
feeding speed
|
0.5-5m/min
|
|
Fast lifting speed
|
18m/min
|
|
Fast feeding speed
|
35m/min
|
|
Max torque of rotary
|
3500-3800Nm
|
|
Rotary speed
|
40-65r/min
|
|
Mud Pump flow
|
250L/min (option)
|
|
High hydraulic leg
|
1.5m
|
|
Feeding efficiency
|
10-35m/h
|
|
Travel speed
|
2.5Km/h
|
|
Climb ability
|
30°
|
|
Dimension(L*W*H)
|
3×1.75×2.25M
|
|
weight
|
4500Kg
|
|
Diesel engine
|
42KW Yuchai
|
About RCF150C hydraulic water well drilling machine
RCF150C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
Advantage and features

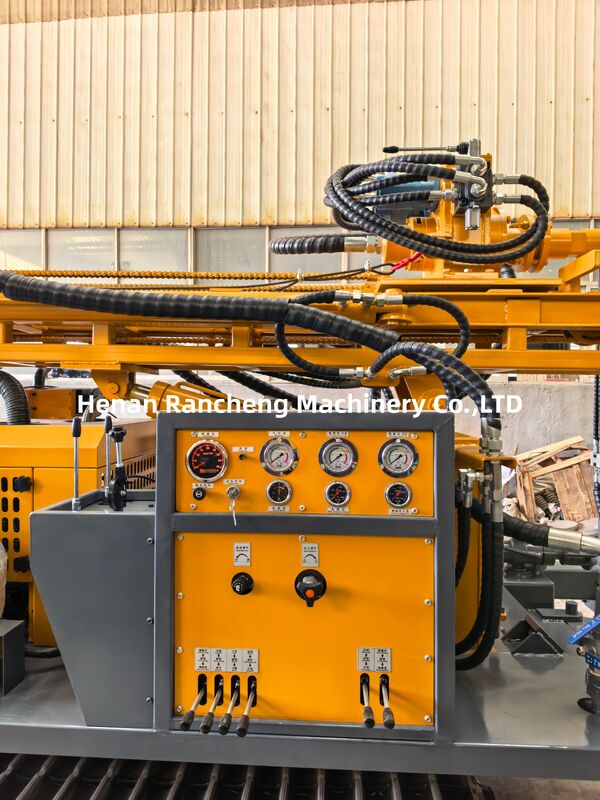

Easy and flexible full hydraulic control
The rig's speed, torque, thrust axial pressure, reverse axial pressure, thrust speed, and lifting speed can be adjusted at any time to meet the requirements of different drilling tool working conditions and different construction processes
Top-drive slewing propulsion lift
It is easy to connect and disconnect the drill pipe, shorten the auxiliary time, and also facilitate drilling with the pipe.
Multifunctional drilling

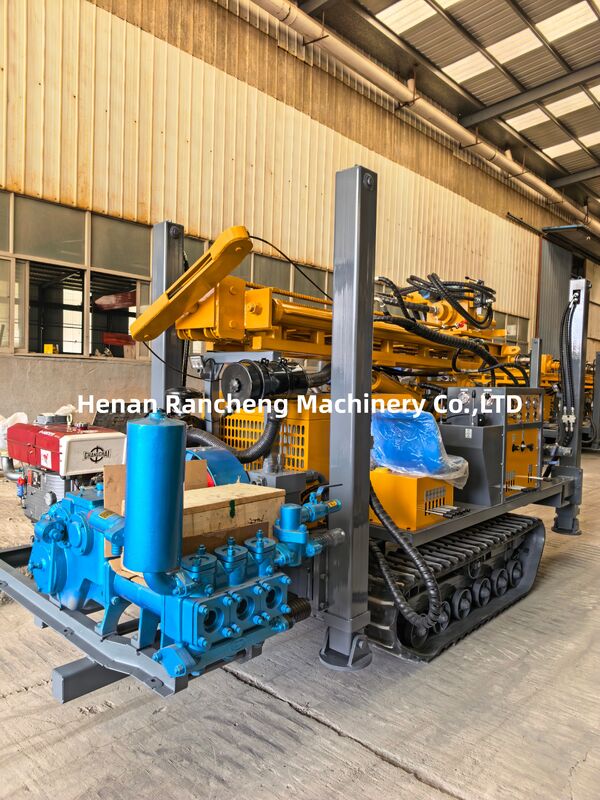

Various drilling processes can be used on this rig, such as: down-the-hole drilling, through-air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, roller drilling, tube drilling, and Core drilling under development and more. The drilling rig can be equipped with mud pumps, foam pumps and generators according to user needs. The rig is also equipped with various hoists as standard.
High efficiency
Due to the full hydraulic and top-drive slewing propulsion lifting, it is suitable for various drilling processes and various drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so the operation efficiency is high.
low cost
DTH drilling is mainly based on DTH drilling technology. DTH rock drilling has high efficiency and lower cost per meter.

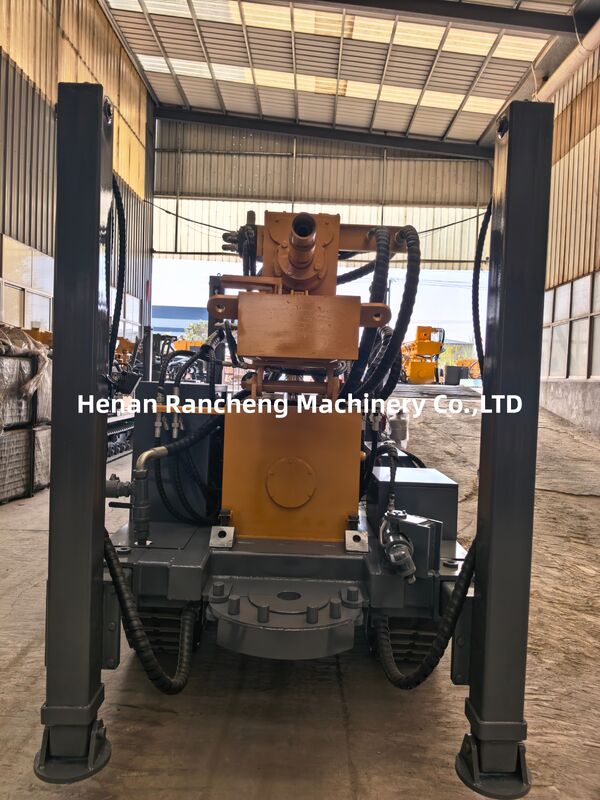

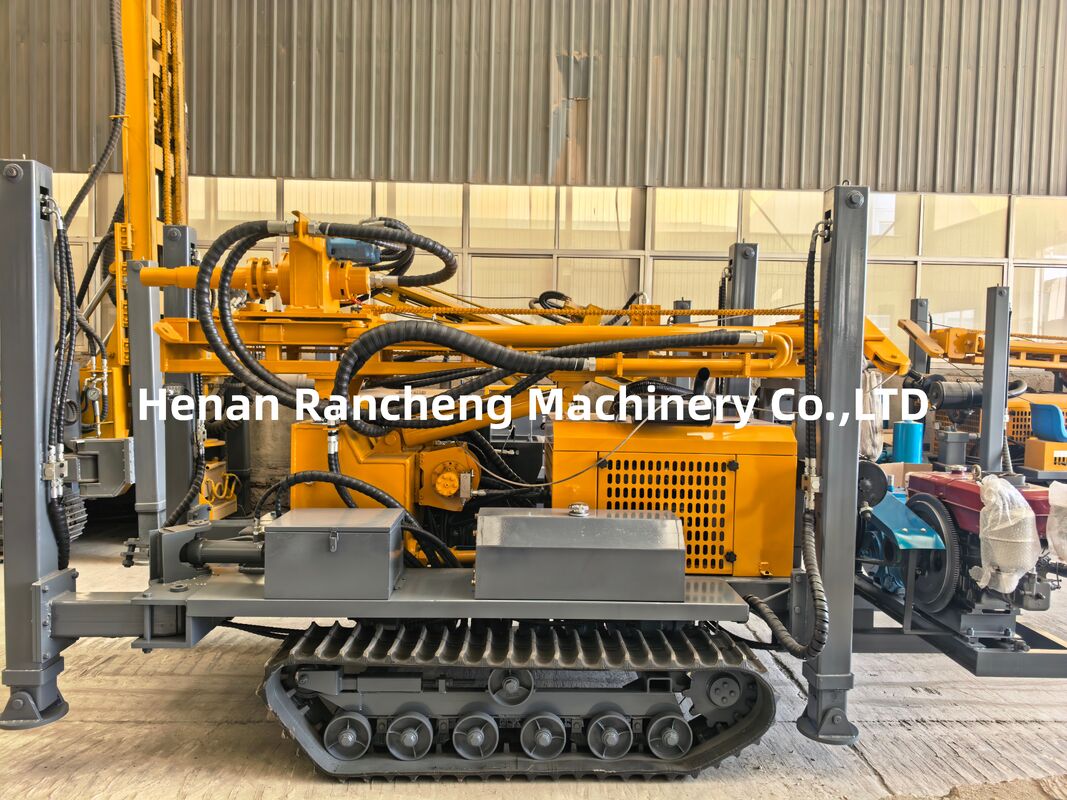

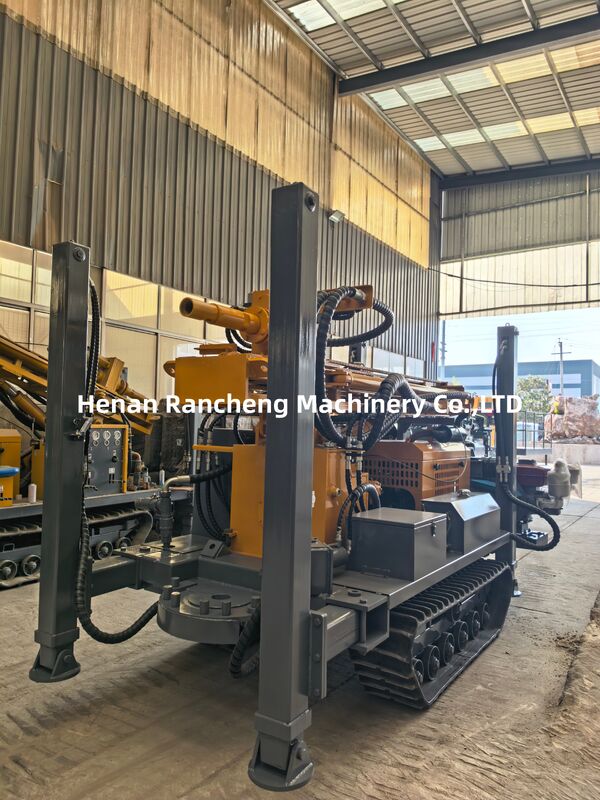

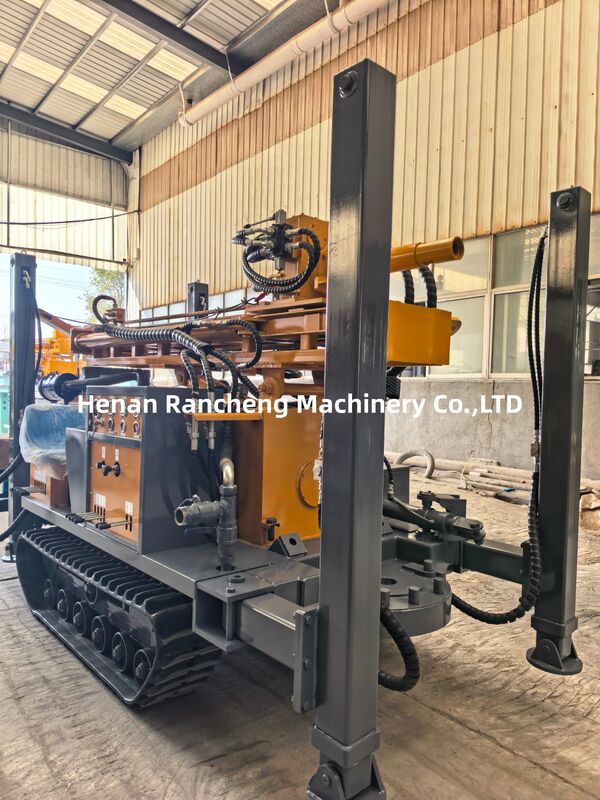

High outrigger and Tracked walking
The high outriggers are convenient for loading and transportation, and can be loaded directly without crane. Tracked walking is more suitable for muddy field movement.
Positive and negative axial pressure adjustment
The optimal impact efficiency of each impactor has its matching optimal shaft pressure and speed. During the drilling process, as the number of drill pipes increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves are adjusted during construction to ensure that the impactor can obtain a more suitable axial pressure. At this time, the impact efficiency is higher.
Rig chassis
It can be a tracked self-propelled chassis or a vehicle-mounted self-propelled chassis.
High configuration
The main components and hydraulic system are all famous brands. In addition, the main frame of the rig is made of high-quality high-strength low-carbon alloy steel, which increases the overall strength and is very resistant to wear.

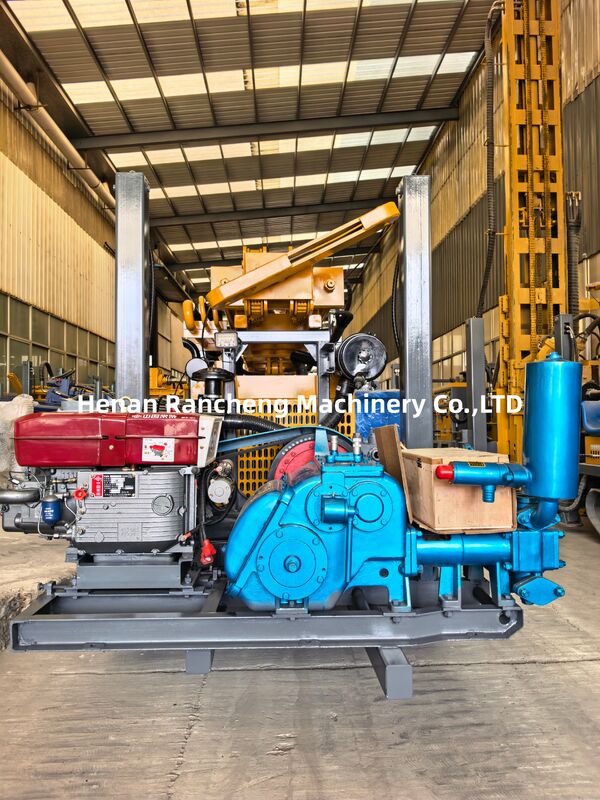

Diesel engine
This drilling water machine adopt 42KW Yuchai engine
Lifting force
design composite tower, 3.4m long stroke, double cylinder lift capacity 12ton .
